Phase One of American Rebuild Complete

The addition of parts is complete.  Here are some pictures of the model at this point.  It is pretty easy to tell what has been changed and added before the model is painted. The majority of parts are from Precision Scale with a smattering from Cal Scale.

Fireman's side of engine.  Domes, stack, headlight, bell and check valve are PSC.  Whistle and globe valve are Cal Scale. The cab roof vent is also built up from styrene.  The tender has had the coal bunker sides extended (styrene) and re-railing frogs have been added to both sides.

Engineers side of engine.  The air pump, regulator and control valves are Cal Scale.  I added an air tank under the boiler between the cross heads.  I used the large tank from a Cal Scale express reefer casting set.

Front of engine.  The signal lamps are PSC castings and the air hose is a Cal Scale part. The pilot is built up from brass strip material.  The coupler is a Sargent.  I was an early adopter of this line of couplers.  Shortly after these hit the market I recall bringing some freight cars to the Naperville meet with the couplers installed.  Unfortunately, none of the attendees paid much attention to them or even seemed to appreciate there significance.  Oh well, that's what happens on the bleeding edge.

Tender rear.  Built up pilot, Cal Scale brake hose and Sargent coupler.

Here are a couple of "rods down" three quarter views.

Something For Me

I started this on Sunday Feb 10, as I had nothing to work on for NAPM.  This is a Bachmann American lettered for the B&O.  After disassembling the model I stripped off the domes, stack, light and bell and then removed the cast on piping.  I have a supply of brass details so over the last few days (between work on tenement) I added the details and plumbed up the engine.  I am working from some photos of some early DSS&A 4-4-0 engines.  One has a neat drop step pilot as would be seen in switching service, I think that is the direction I will head.

NAPM Backdrop ELA Tenements

The next section of the backdrop, eight to ten feet, will be a series of tenements.  The inhabitants of East LaSalle need a place to live.  It seems appropriate to include them in this retail, light manufacturing environment.  To maintaining the consistency of the background these buildings will be angled to the backdrop with the side of the structures being the primary exposure.

Finding appropriate models will be a challenge.  On Monday I purchased a Scale Structures Victorian Townhouse kit as a starter.  I have found from past experience that building these kits is a challenge, nothing fits very well, and this one proved to be consistent with this experience.  I took the kit to the club on Tuesday and got an idea of how the angles would work out.  At home that afternoon I got started.

 I plotted the angle on the roof section and then sliced the two sections apart.

Next I cut the angle.  It does take some courage to attack an $80 model with a hack saw!

Next I tacked the three wall sections together with CA.  When the glue hardened I then added a substantial bead of five minute epoxy to the joints.

I added the second rear wall segment and then fitted the roof.  The roof is shorter than the side walls so I butted the front edges to keep the side wall step downs even.

These photos show the mismatch on the rear and slight gap in the front.

I filled the gap in the back with some 1/4 x 1/8 basswood strip material.  Luckily it was an exact fit.  I also used some of the same strips to continue the side walls.  An 1/8 sq strip was used to fill in the top of the right rear wall.

These are the other two sections assembled.

Again a filler strip was added at the rear to fill the gap in the roof.

 On Wednesday I spent some time painting the right hand building.  I spray the interior black in the event that someone at some time might want to install lighting.  That is not my bag, I just build models! The next step will be weathering.





NAPM East LaSalle Backdrop

 This is the block of buildings in there positions along the backdrop.  The yard seen in the foreground is the Seeboth St coach yard.

 The above photo is of the block east of the prior one.

This is the east end of the above block.

Today I worked on contouring the edge of the engine pocket track.  I cut back the Homasote to match the height of the pink foam.

This is how it worked out.

I found some wall casting in the storeroom.  I reduced their height to 2 1/4 inches and cut them for a matched fit.  It looks like they will work out so next week I will bond them in place.

Repositioned foreground buildings.

NAPM Backdrop Buildings

Magnuson department store.  It has been chopped at an angle for placement against the backdrop.  All of the backdrop building have been configured in that manner, it really enhances their appearance.  I have painted the model to appear as thought it was built from cut limestone blocks with a pinkish sandstone for the window cornices and trim.  I painted the walls with Polyscale Antique White and the trim with aged concrete (this happened to be a pinkish batch of aged concrete).  I like to use Dr. Bens aging solutions, I used very dilute black on all surfaces.  Next I used Dr. Bens pigments ( #1380 Silverton Gold and # 1377 Ocher Russet) to color the limestone.

Napm Backdrop Buildings

 DPM modular with Walthers fire escape

Magnuson Tinkers Washer Works wall sections stacked up with Walthers fire escapes

Rear of Magnuson Model, not sure which one, possibly the department store.

Rear of City Classics building

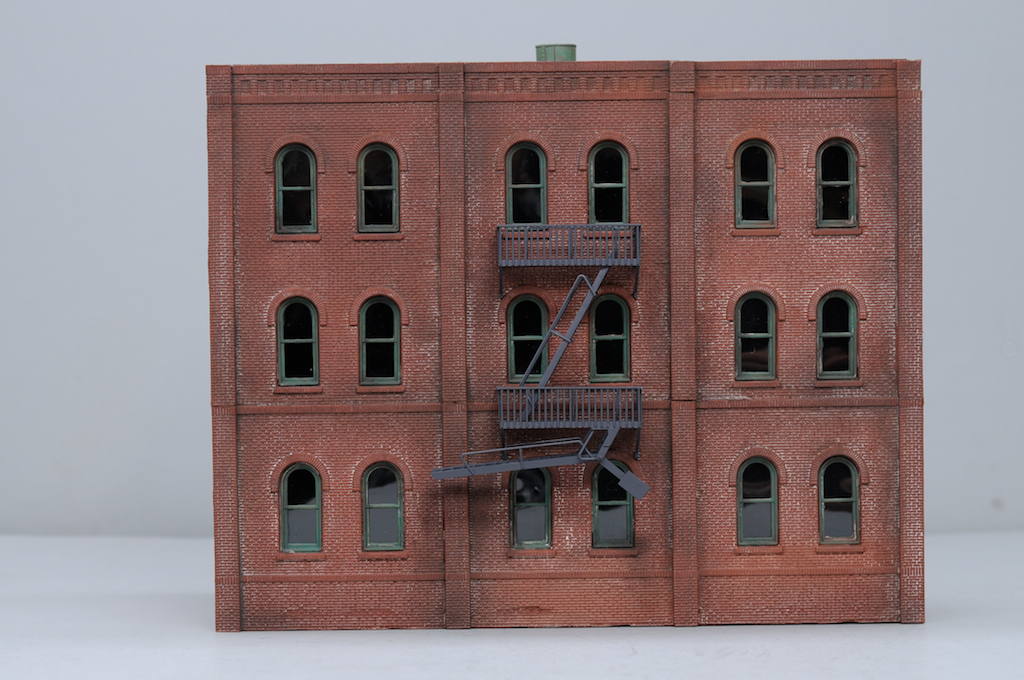

These are the latest creations for the next block on the NAPM backdrop.  These are face on pictures, the buildings are actually angled when placed on the layout.
